图片上传

图片上传

实现步骤说明

1、媒体读写权限检查和申请\ 2、从手机存储选择图片或拍照\ 3、把图片复制到缓存目录\ 4、接口请求上传图片

所需权限‼️

module.json5：

**ohos.permission.READ_MEDIA**

**�ohos.permission.WRITE_MEDIA**

完整代码

上传工具类

import fs from '@ohos.file.fs';
import { checkAppPermission } from './util'
import { HdResponse } from '../request'
import { API_URL, userApi } from '../../apis'
import { authStore } from '../../store';
import { BusinessError } from '@ohos.base';
import camera from '@ohos.multimedia.camera';
import { request } from '@kit.BasicServicesKit';
import camerapicker from '@ohos.multimedia.cameraPicker';
import { photoAccessHelper } from '@kit.MediaLibraryKit';
import { Context } from '@ohos.abilityAccessCtrl';
import common from '@ohos.app.ability.common'

//上传回调数据类型
export interface UploadReceiveRes {
  uid: string
  url: string
  name: string
  fileType: string
}

export enum PickerMediaType {
  IMAGE,
}

class ImageUploadModule {
  private Url_Base: string
  private context = getContext(this) as common.UIAbilityContext; //UIAbilityContext

  constructor(Url_Base: string) {
    this.Url_Base = Url_Base
  }

  //开始上传图片 path：图片路径后缀（图片名称）
  async uploadImage(path: string): Promise<HdResponse<UploadReceiveRes[]>> {
    return new Promise(async (resolve, reject) => {
      const token = authStore.getToken()
      let uri = `internal://cache/${path}` //上传图片全路径
      const files: request.File[] = [
        {
          uri,
          filename: path,
          // 该字段很重要（要和后端保持一致）
          name: "files",
          type: path.split('.')[path.split('.').length-1]
        }
      ]

      let uploadConfig: request.UploadConfig = {
        url: this.Url_Base + userApi.upload,
        header: {
          "Authorization": `Bearer ${token}`
        },
        method: "POST",
        files,
        data: [],
      }

      try {
        let uploadTask: request.UploadTask = await request.uploadFile(getContext(), uploadConfig)
        //上传中回调
        uploadTask.on('progress', (size, total) => {
          console.log('上传进度:', size.toString(), total.toString())
        })

        // 每上传一张图片成功回调
        // 响应体的 header 和 body 都会在这个 header object 里存放
        uploadTask.on('headerReceive', (data: object) => {
          console.info("upOnComplete headerReceive taskState:" + data['body']);
          const result: HdResponse<UploadReceiveRes[]> = JSON.parse(data['body'])
          resolve(result)
        })

        //所有上传完成回调
        uploadTask.on('complete', (taskStates: request.TaskState[]) => {
          console.info("upOnComplete complete taskState:" + JSON.stringify(taskStates));
        })
        //上传失败回调
        uploadTask.on('fail', (taskStates: request.TaskState[]) => {
          console.info("upOnComplete fail taskState:" + JSON.stringify(taskStates));
          reject()
        })
      } catch (e) {
        console.log(JSON.stringify(e), 'e')
      }
    })
  }

  // 上传图片 拍照/相册上传
  async imageUpload(type: PickerMediaType): Promise<HdResponse<UploadReceiveRes[]>> {
    return new Promise(async (resolve, reject) => {
      //检查是否有读写外部媒体权限
      let res: boolean = await checkAppPermission(this.context)
      //无权限返回
      if (!res) {
        return
      }
      // 从相册选择
      if (type === PickerMediaType.IMAGE) {
        const photoSelectOptions = new photoAccessHelper.PhotoSelectOptions();
        photoSelectOptions.MIMEType = photoAccessHelper.PhotoViewMIMETypes.IMAGE_TYPE; // 过滤选择媒体文件类型为IMAGE
        photoSelectOptions.maxSelectNumber = 1; // 选择媒体文件的最大数目
        const photoViewPicker = new photoAccessHelper.PhotoViewPicker();
        const photoSelectResult = await photoViewPicker.select(photoSelectOptions)
        if (photoSelectResult.photoUris.length) {
          //复制图片到缓存目录（缓存目录才有读写权限）
          let filePath = await copyFileToCache(photoSelectResult.photoUris[0], this.context)
          if (filePath) {
            this.uploadImage(filePath)
              .then((result) => {
                resolve(result)
              })
              .catch(() => reject())
          }
        }
      }
      // 拍照
      if (type === PickerMediaType.PHOTO) {
        try {
          let pickerProfile: camerapicker.PickerProfile = {
            cameraPosition: camera.CameraPosition.CAMERA_POSITION_BACK
          };
          let pickerResult: camerapicker.PickerResult =
            await camerapicker.pick(this.context, [camerapicker.PickerMediaType.PHOTO], pickerProfile);
          if (pickerResult?.resultUri) {
            //复制图片到缓存目录（缓存目录才有读写权限）
            let filePath = await copyFileToCache(pickerResult.resultUri, this.context)
            if (filePath) {
              //上传头像并设置
              this.uploadImage(filePath)
                .then((result) => resolve(result))
                .catch(() => reject())
            }
          }
        } catch (error) {
          let err = error as BusinessError;
          console.error(`the pick call failed. error code: ${err.code}`);
        }
      }
    })
  }
}

/**
 * 复制文件到缓存目录下
 * @param path :文件路径
 * @param context :Context
 * @returns Promise<string> 移动后文件路径
 */
async function copyFileToCache(path: string, context: Context): Promise<string> {
  try {
    let file = fs.openSync(path, fs.OpenMode.READ_ONLY) //只读
    if (file) {
      let fileDir: string = `${context.cacheDir}` //临时文件目录
      //时间戳生成随机文件名
      let newPath: string = `${new Date().getTime()}_${path.split("/")[path.split("/").length-1]}`
      let targetPath: string = `${fileDir}/${newPath}`
      fs.copyFileSync(file.fd, targetPath)
      return newPath
    } else {
      return ''
    }
  } catch (e) {
    return Promise.resolve('')
  }
}

// 实例化图片上传实例,然后导出
export const UploadModule = new ImageUploadModule(API_URL)

其他工具函数

import { common } from '@kit.AbilityKit';
import bundleManager from '@ohos.bundle.bundleManager';
import abilityAccessCtrl, { Permissions } from '@ohos.abilityAccessCtrl';

interface rejectObj {
  code: number
  message: string
}

//检查权限
export async function checkAppPermission(context: common.UIAbilityContext): Promise<boolean> {
  try {
    const READ_MEDIA_PERMISSION: Permissions = 'ohos.permission.READ_MEDIA' //媒体读取权限
    const WRITE_MEDIA_PERMISSION: Permissions = 'ohos.permission.WRITE_MEDIA' //媒体写入权限
    let permissionList: Permissions[] = []; //需要申请选项列表
    let readPermission = await checkPermissions(READ_MEDIA_PERMISSION) //检查是否有媒体读取权限
    !readPermission && permissionList.push(READ_MEDIA_PERMISSION)
    let writePermission = await checkPermissions(WRITE_MEDIA_PERMISSION) //检查是否有媒体写入权限
    !writePermission && permissionList.push(READ_MEDIA_PERMISSION)

    console.log('5555', permissionList.length.toString())
    if (permissionList.length) {
      //申请权限
      let res: boolean = await applyPermission(context, permissionList)
      if (!res) { //用户未同意授权
        AlertDialog.show({
          title: "提示",
          message: "无权限读写用户外部存储中的媒体文件信息，请前往系统设置开启",
          alignment: DialogAlignment.Center,
          secondaryButton: {
            value: '关闭',
            action: () => {
            }
          }
        })
      }
      return res
    }
    return true

  } catch (e) {
    return Promise.reject(e)
  }
}

/**
 * 申请权限
 * @params context:AblitiyContext
 * @params permissions:权限名称数组
 * @returns Promise<boolean>：是否授权成功
 */
async function applyPermission(context: common.UIAbilityContext,
  permissions: Array<Permissions>): Promise<boolean> {
  let atManager = abilityAccessCtrl.createAtManager();
  return new Promise((resolve: (res: boolean) => void, reject: (e: rejectObj) => void) => {
    atManager.requestPermissionsFromUser(context, permissions).then((data) => {
      let grantStatus: Array<number> = data.authResults;
      resolve(grantStatus.every(item => item === 0))
    }).catch((err: rejectObj) => {
      reject(err)
    })

  })
}

//检查用户权限
//@params permissions:权限名称数组
async function checkPermissions(permissions: Permissions): Promise<boolean> {
  try {
    let grantStatus: abilityAccessCtrl.GrantStatus = await checkAccessToken(permissions);
    return grantStatus === abilityAccessCtrl.GrantStatus.PERMISSION_GRANTED
  } catch (e) {
    return Promise.reject(e)
  }
}

//校验应用是否授予权限
//@params permissions:权限名称数组
//@return permissionabilityAccessCtrl:权限名称
async function checkAccessToken(permission: Permissions): Promise<abilityAccessCtrl.GrantStatus> {
  let atManager = abilityAccessCtrl.createAtManager();
  let grantStatus: abilityAccessCtrl.GrantStatus = 0;

  // 获取应用程序的accessTokenID
  let tokenId: number = 0;
  try {
    let bundleInfo: bundleManager.BundleInfo =
      await bundleManager.getBundleInfoForSelf(bundleManager.BundleFlag.GET_BUNDLE_INFO_WITH_APPLICATION);
    let appInfo: bundleManager.ApplicationInfo = bundleInfo.appInfo;
    tokenId = appInfo.accessTokenId;
  } catch (err) {
    console.error(`getBundleInfoForSelf failed, code is ${err.code}, message is ${err.message}`);
  }

  // 校验应用是否被授予权限
  try {
    grantStatus = await atManager.checkAccessToken(tokenId, permission);
  } catch (err) {
    console.error(`checkAccessToken failed, code is ${err.code}, message is ${err.message}`);
  }

  return grantStatus;
}

注意

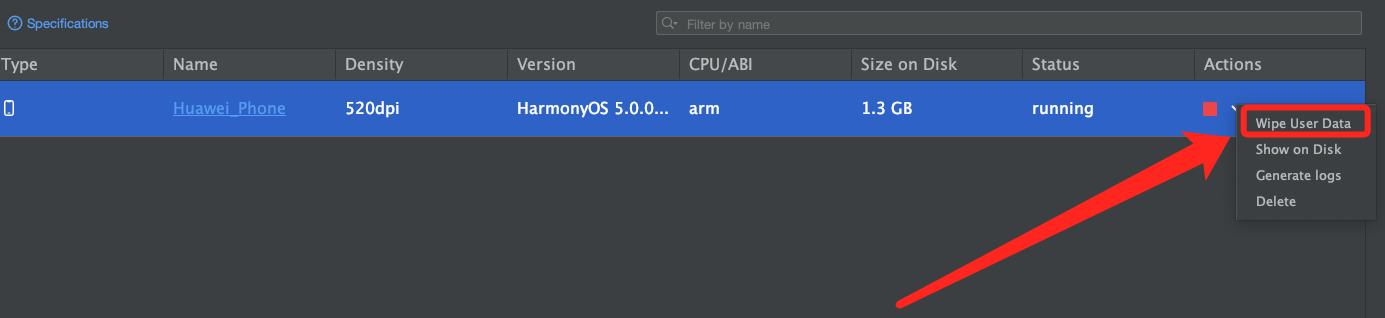

一开始我的模拟器一直报 13400001 错误（文件操作权限） 解决：Wipe User Data（清楚用户缓存）或者 删除模拟器重新安装
